The Mountain Bikers eMTB

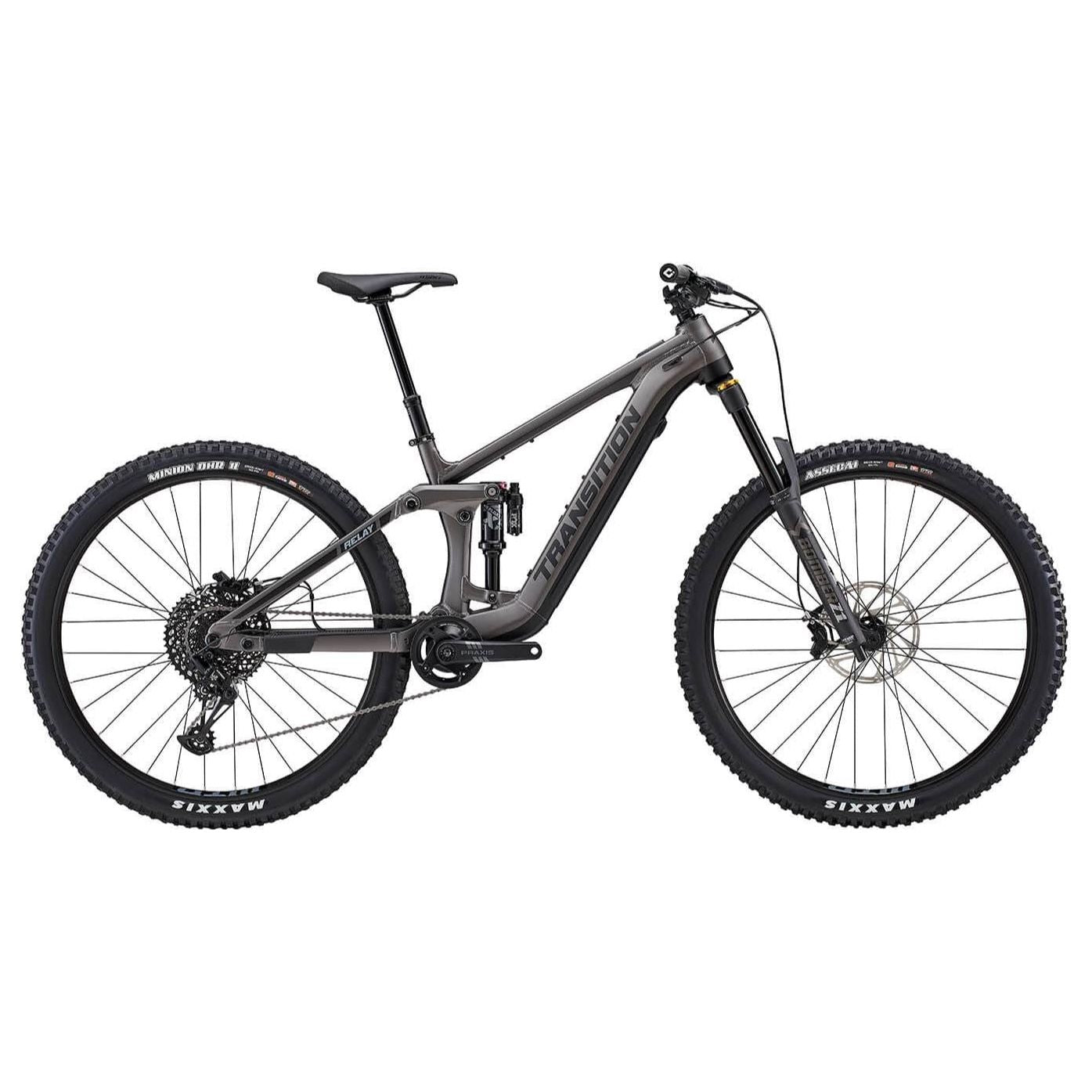

Living in uncharted territory, the Relay is a lightweight, long travel, modular mountain bike.

We have always wanted a bike that could provide both an electric and non-electric experience in one chassis. The Relay is light, efficient, and quiet. This provides a more intuitive and natural feel on trail than many would expect from an eMTB. The Relay is here and ready to meet all of your mountain biking needs. Going for a rip with friends on eMTB's? Power it up and head out. Going for a rip with some friends on mountain bikes? Simply remove the battery and hit the trail with no tools required. The Relay does it all.

Two bikes in one
The Relay can be ridden as an ebike or a non-powered bike by simple removing the battery. The drive unit has such minimal drag that when your ride it powered off and without the battery, you'll quickly forget you still have a motor in your frame. During our development process we tested it without the battery and found very little difference even with the small amount of added weight from the motor that stays low and centred. This aspect of the Relay opens up avenues that many haven't addressed before. It fills the desires of a rider looking for the ebike experience, while also allowing riders to remove the battery to pedal with friends not on ebikes, shuttle, ride the bike part or ride in areas not accessible to ebikes. You can quickly open the tool free battery door, remove the battery from the frame and let your legs do the rest. We think many riders are currently faced with the decision to purchase either an ebike or a non-powered bike, not both and the Relay will be their answer.

Fazua Ride60 motor
The Fazua Ride60 system has 60Nm or torque and 450W peak power with virtually no drag. This creates a very efficient system that punches far above what its numbers would suggest. With the smooth power delivery and extremely quiet motor, the Relay is one of the most intuitive and natural feeling ebikes pushing the ride experience closer to that of a non-powered bike.

Fazua Energy 430Wh battery
The 430Wh battery is easily swappable and provides range similar to what we are finding on larger battery, higher power ebikes. An external range extender will be available in the future.

Fazua ring controller
The simple and ergonomic ring controller has three ways of movement, up, down and inward. Pushing up increases the power level, while pushing inward will activate walk mode. Additionally, holing the controller up will activate boost mode, giving you peak power output for roughly ten seconds of boost.

FAZUA RIDE60 APP
The Fazua Ride60 app pairs to the Relay via bluetooth technology. The Relay comes equipped with our well thought out profile, but you are able to fully customize your settings in all assistance modes. With Max Power and Support Relation you are able to set the maximum mechanical power output and torque in each mode. Support Relation allows you to adjust how much assistance you are given in relation to how much force you apply to the pedals.

Ramp Up allows you to adjust how responsive the system delivers the assistance in each mode. Whether you're an experienced rider looking for the most responsive and powerful setup, or someone who values more distance out of your rides, the app provides a comprehensive array of adjustments to tune your ride to your liking.

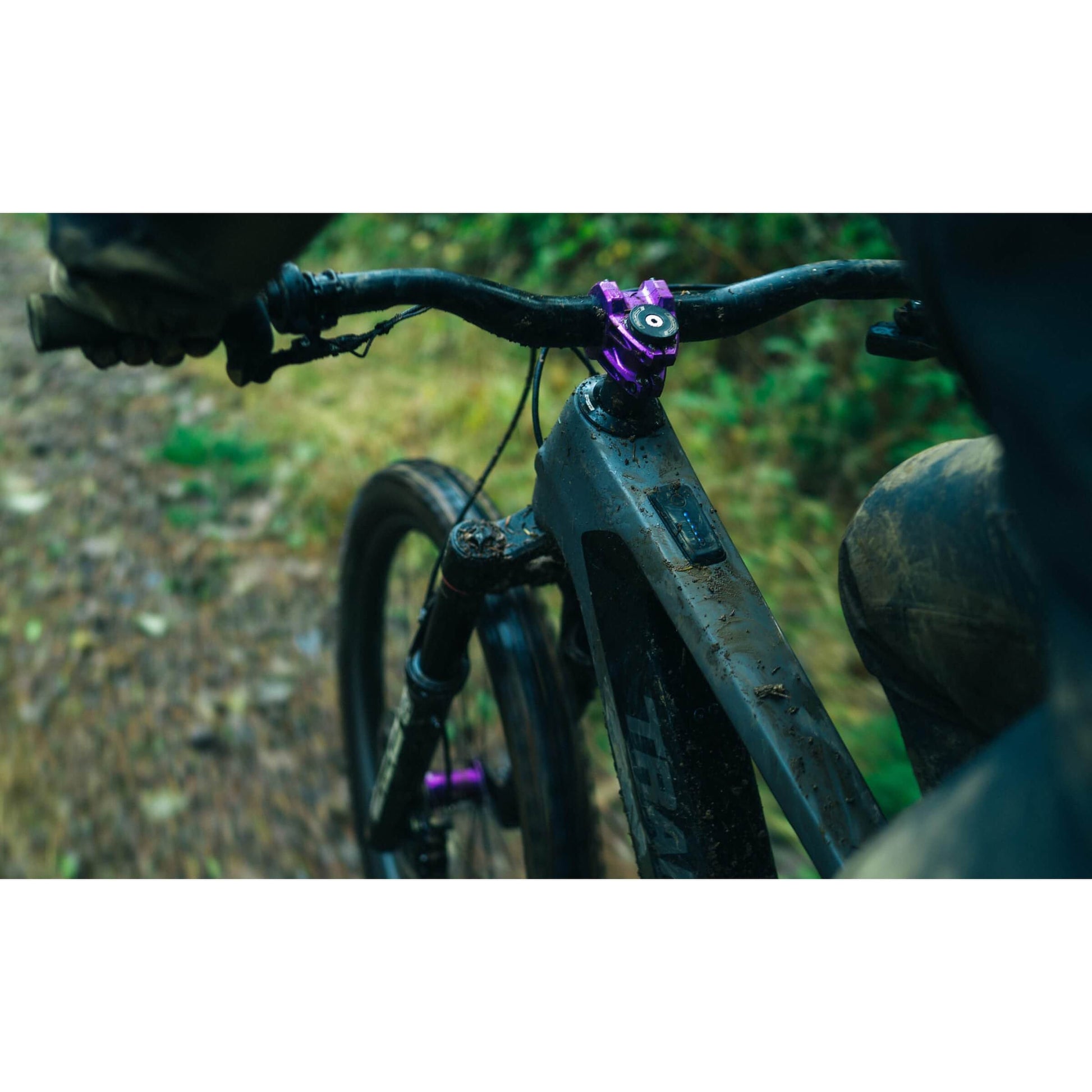

LED Hub
The simple interface on the top tube consists of 5 led lights to give you an indication of power mode, battery life and a connection port for your phone or other device. Out of the box the relay has three power modes, breeze, river and rocket. breeze mode provides enough assistance to well overcome the additional weight of the bike and is very usable in many situations where you are not trying to go much faster than normal biking pace. River mode is pre-set to match the amount of energy you are delivering to the pedals, providing a natural feel that can deliver across the range of power. rocket mode provides full system power to help tackle the steepest and most challenging terrain.

LIGHTWEIGHT AND PURPOSE BUILT
Starting at 42.5lb/19.27 kg with the battery and 37.5lb/17.01kg without the battery, every Relay is purpose built with components to be ridden hard.

RELAY VS RELAY PNW

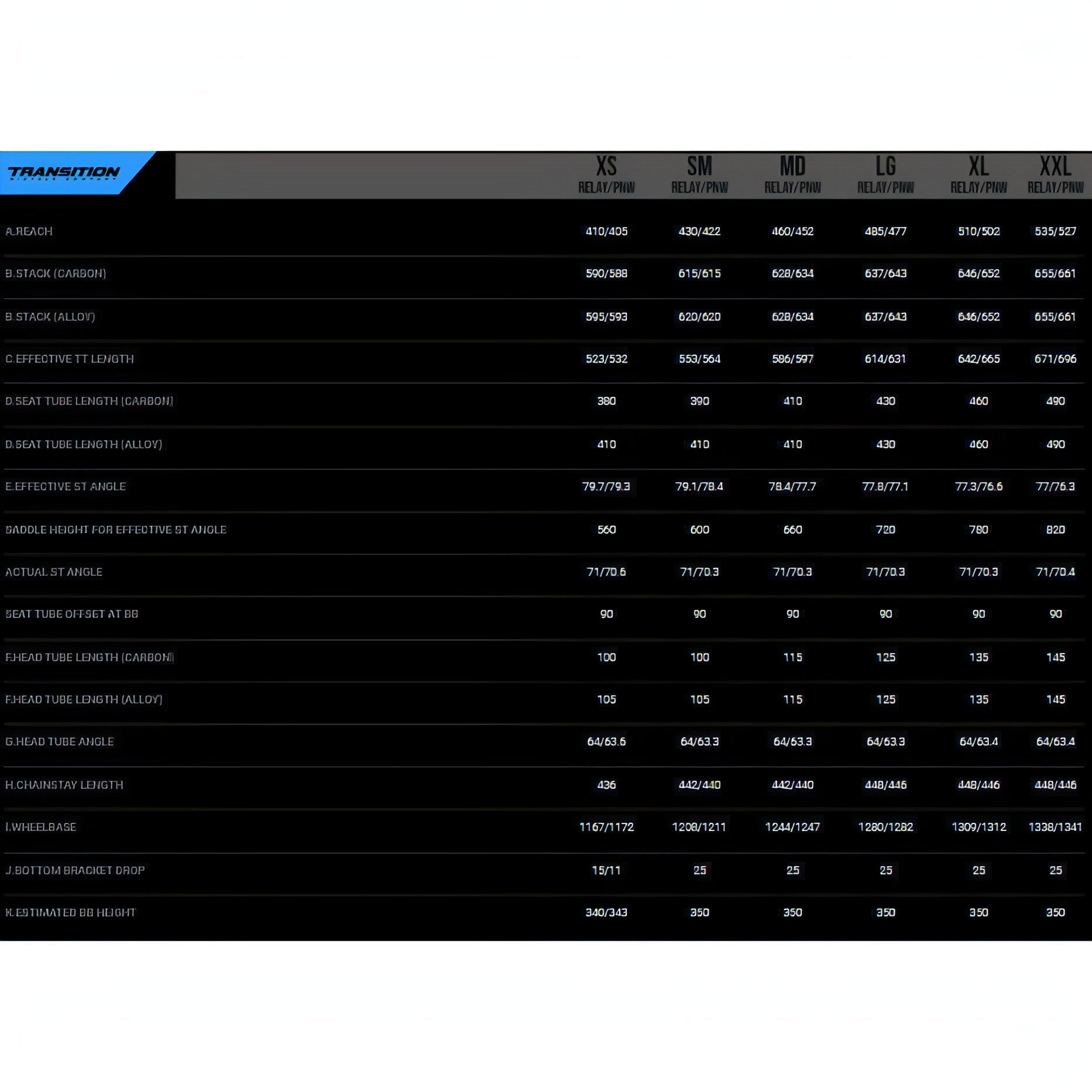

The Relay and Relay PNW share the same frame. The lower shock flip chip adjusts the geometry to compensate for a 27.5" or 29" rear wheel. Both Relay and Relay PNW have the ability to be run at 160 or 170mm travel front and rear, dual 29 or mixed wheel. Riders can choose the Relay with dual 29 and 160mm travel for a more lightweight, trail bike feel, or chase their burly trail dreams with the heavy hitting Relay PNW with 170mm travel and mixed wheels. The Relay is purpose built to be ridden hard and comes equipped with a component spec for doing so. Making both the Relay and Relay PNW two of the lighter, heavy hitting eMTBs on the market.

Frame features:

• Rideable without the battery With modularity in mind, riders can choose if the want a powered or non-powered experience for their ride.
• Tool free removeable battery Quickly remove the battery without the use of any tools.
• Flip chip on the lower shock mount The flip chip adjusts the geometry according to what rear wheel size is installed: 29 or 27.5".
• Tyre Clearance Up to 2.6".
• Gear accessory mount All Relay frames come equipped with a gear accessory mount on the underside of the top tube.

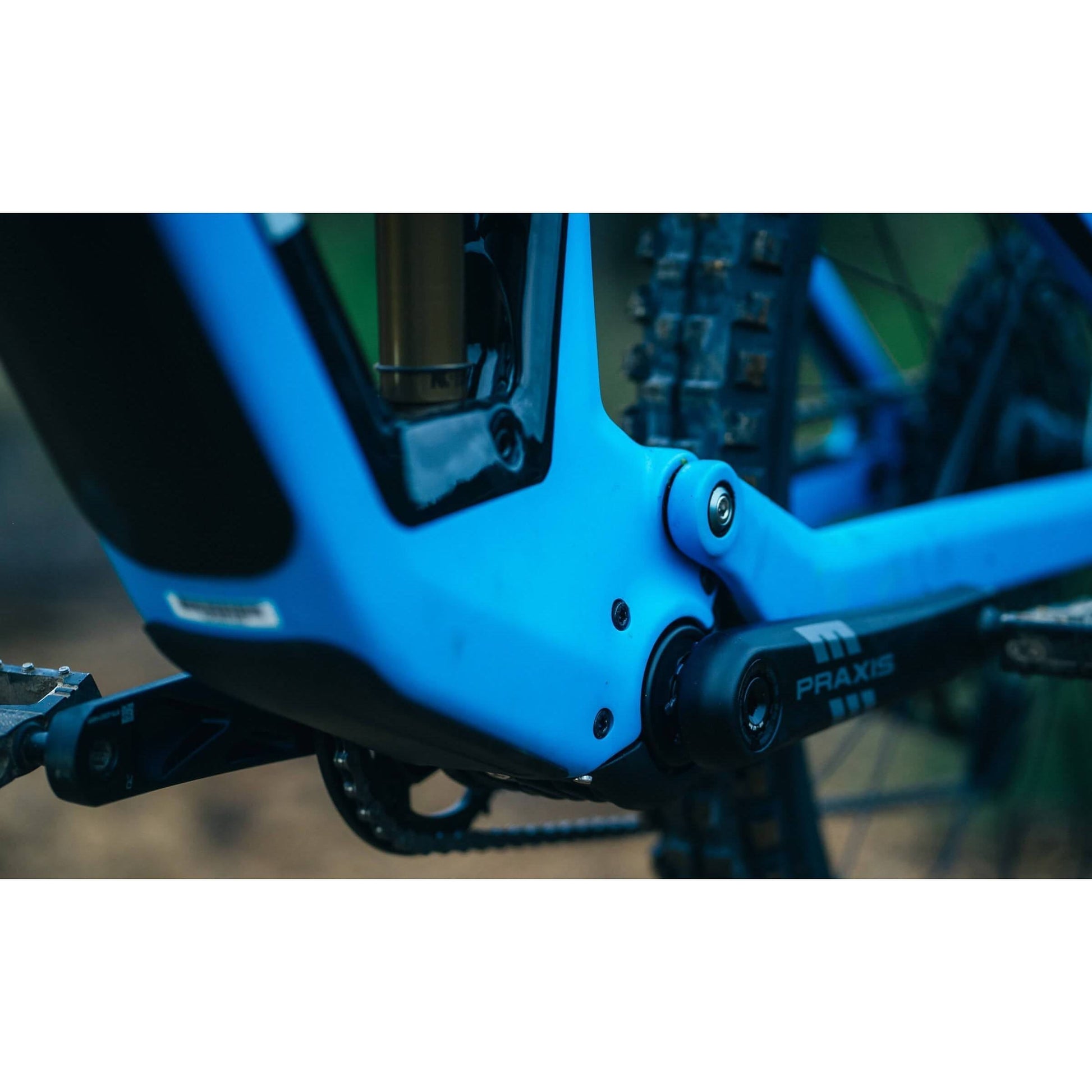

• Chainring backguard Designed in-house, the forged spider bashguard keeps the chain, chainring and frame safe from impacts.
• Cable routing Fully internal cable routing is a breeze with easy access through the battery door, while ports in the headtube keep it quick and easy to work on the headset.
• Long dropper insertion With an uninterrupted seat tube, you are free to drop your post all the way to the collar, allowing for long droppers on every size.
• UDH The Relay utilizes SRAM's universal derailleur hanger.

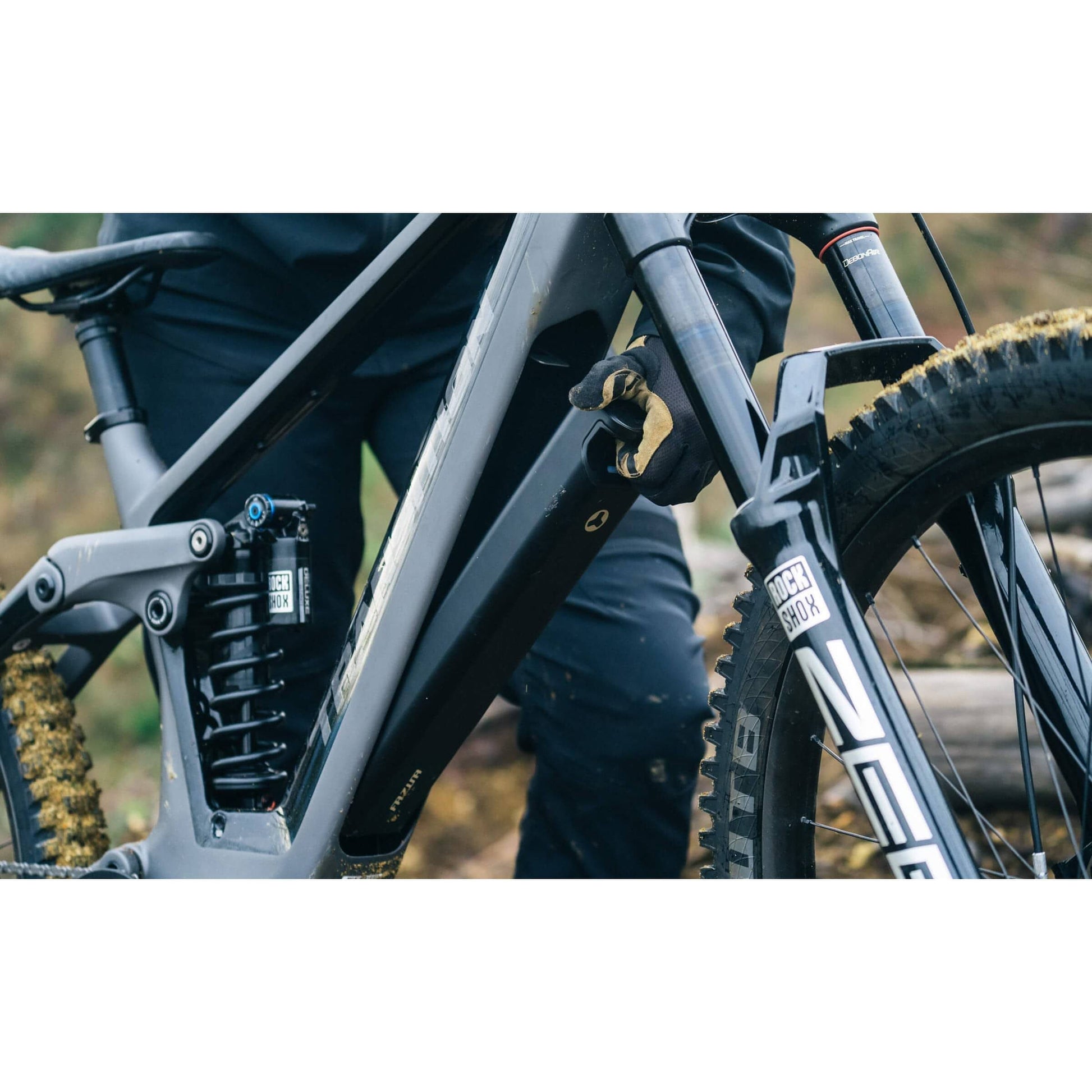

• Coil and air compatible With 26% progression, the rear suspension is fully compatible with both air and coil shocks without worrying about harsh bottom out.
• Water bottle compatible A water bottle fits inside the front triangle on MD-XXL sizes.

Features:

• Relay Alloy 160mm
• Fox Float X Performance

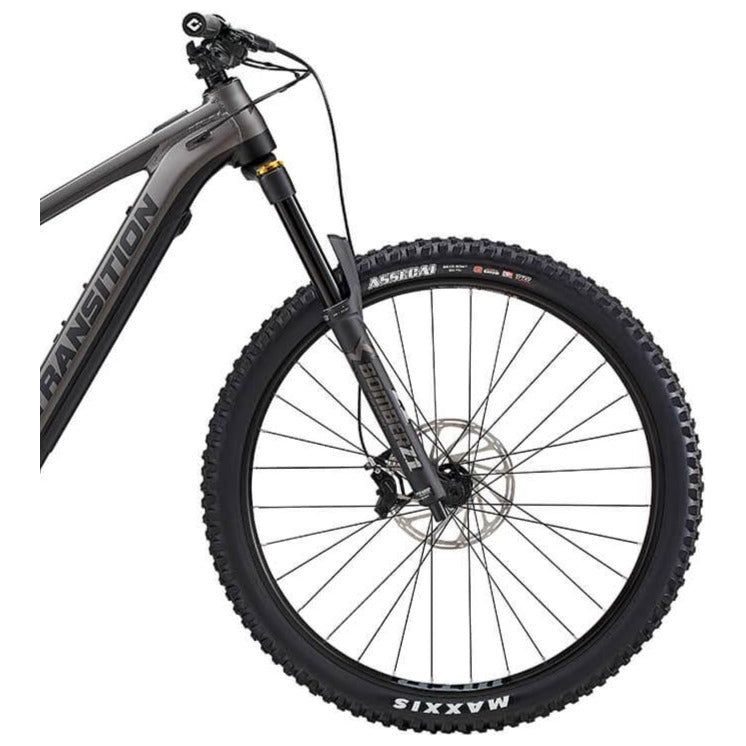

• Marzocchi Z1 Air (160mm)
• Fazua Ride 60 Drive Unit
• Fazua Energy 430 Take Out Battery

• Fox Float X Performance 2 Position
• Fazua Ride 60 Drive Unit
• Fazua Energy 430 Take Out Battery
• OneUp Dropper Post
• SRAM NX Eagle 1x12 Drivetrain
• SRAM Code R Brakes
